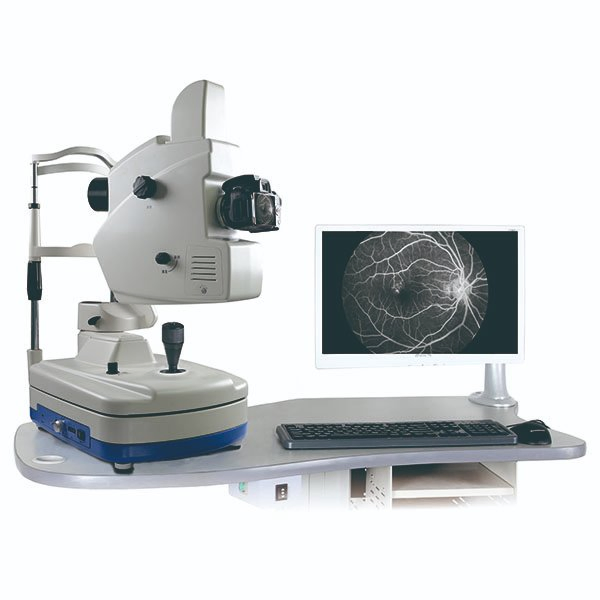

Fluorescein Angiography Fundus Camera Automatic Ophthalmological Examination Fundus Camera

1 / 5

Fluorescein Angiography Fundus Camera Automatic Ophthalmological Examination Fundus Camera

Classification:	Ophthalmological Fundus Camera
Type:	Ophthalmological Fundus Camera
Certification:	ISO13485

Send Inquiry

Product Description

Basic Specifications

Model NO.

CCENT-APS1

Warranty

1 Year

MOQ

1 Unit

Transport Package

Standard Export Package

Specification

Standard

Origin

China

Production Capacity

500 units/Month

Product Description

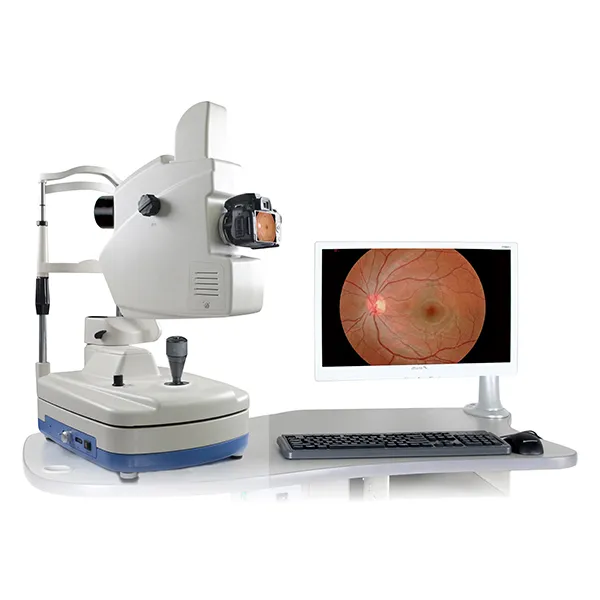

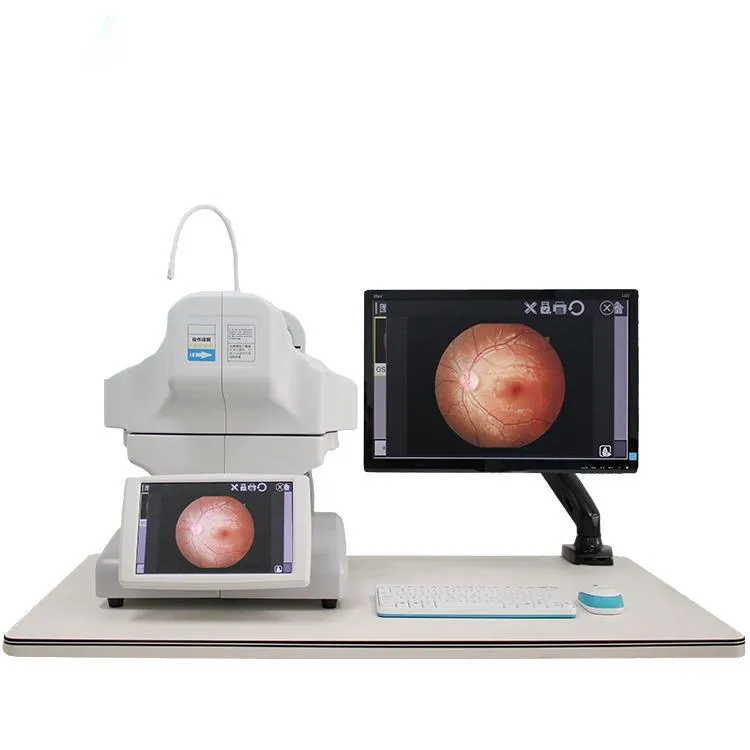

Fluorescein Angiography Fundus Camera Automatic Ophthalmological Examination Fundus Camera

Model: CCENT-APS1

Technical Specifications

Working Distance: 40mm from cornea (Errors: ±2mm)
Field of Vision Scope: 42°-53°
Horizontal Angle: ±30°
Up and down Angle: ±12.5°
Outer Ring Size: φ7.4mm
Inner Ring Size: φ4mm
Filters: Stimulating Filter (red & blue)
Depth of Field: ≥5mm
Image Resolution: 10 Mega pixels

Operational Functions

• Non-mydriatic Operation
• Auto-detected Eye Position
• Minimum Pupil size: 3mm
• Illumination Source: Infrared
• Refractive Compensation: ±15D
• Auto / Manual Focus
• Auto Adjust Flash/Illumination Intensity
• Five Internal Fixation Lamps / External Fixation Lamp

Seat Movement Scope:

Front and Back: 60mm | Right and Left: 120mm | Up and Down: 30mm

Working Environment:

Temp: -5ºC to 40ºC | Humidity: ≤85% | Power: AV 220V±22V, 50Hz

Medical Equipment Solutions

Category	Department	Equipments
Hospital Medical Equipment	X-Ray Room	X-Ray Machine, Processor, Film, Cassette, Intensifying Screen, Lead Clothing (Glove, Glasses, Cap, Apron, Collar)
	Ultrasound	B/W 2D Ultrasound, 2/3/4D Color Ultrasound
	Laboratory	Chemistry Analyzer, Hematology Analyzer, Microplate ELISA Reader/Washer, Centrifuge, Pipette, Water Bath, Urine Analyzer
	Operation Room	Anesthesia Machine, Ventilator, Operating Lamp, Table, Pendant, Medical Drill/Saw, ECG, Patient Monitor, Defibrillator, Infusion Pump, Electrocoagulation, Oxygen Generator, Sterilizer

Frequently Asked Questions

What is the required pupil size for examination?

The CCENT-APS1 fundus camera is non-mydriatic and can perform examinations with a minimum pupil size of 3mm.

What is the image resolution of this camera?

The system provides a high image resolution of 10 Mega pixels for clear clinical diagnosis.

Does the camera support automatic focusing?

Yes, it features both automatic and manual focus modes, along with auto-detection of eye position for ease of use.

What is the field of vision scope?

The camera offers a broad field of vision scope ranging from 42° to 53°.

What kind of illumination source is used?

It utilizes an infrared illumination source, which is comfortable for the patient and ideal for non-mydriatic imaging.

What are the power requirements for this device?

The device operates on a standard power supply of AV 220V±22V at a frequency of 50Hz±1Hz, with an input power of ≤300W.
