Cardiology Ptca Angiography Femoral or Radial Introducer Sheath Set

1 / 4

Cardiology Ptca Angiography Femoral or Radial Introducer Sheath Set

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.: CS-04/05/06/07/08

Sterilization: Ethylene Oxide (EO)

Guarantee Period: 3 Years

Group: Adult

Logo Printing: Available

Customization: OEM/ODM

Package: Paper Bag+Inner Box+Outer Box

Specification: 4/4.5/5/6/7/8Fr * 9-16cm

Origin: China

Product Description

This Introducer Sheath Set is intended for use in patients requiring the percutaneous retrieval of indwelling catheters, cardiac leads, fragments of catheter tubing or guidewire, and other foreign objects. It establishes percutaneous access to insert other devices into blood vessels safely and effectively.

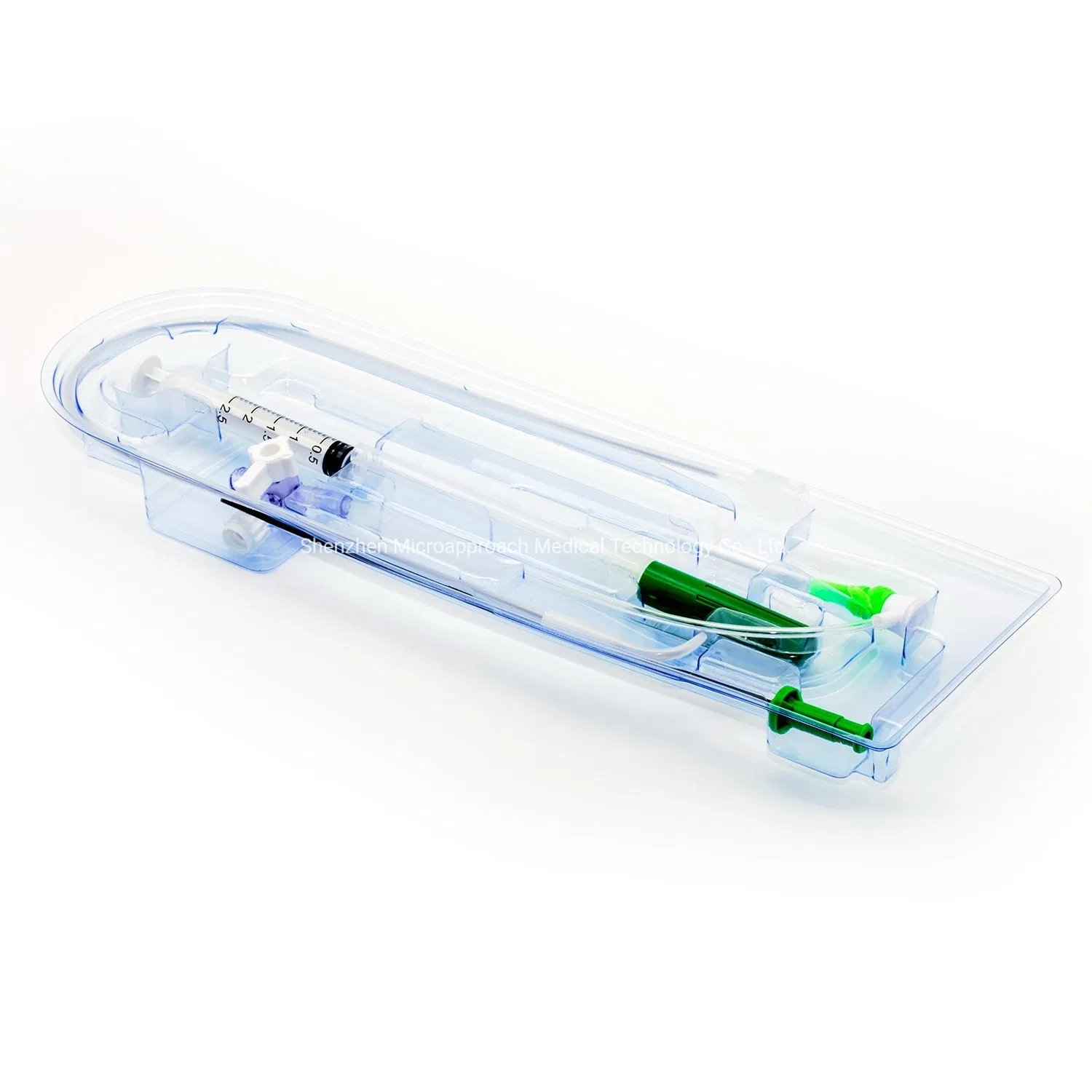

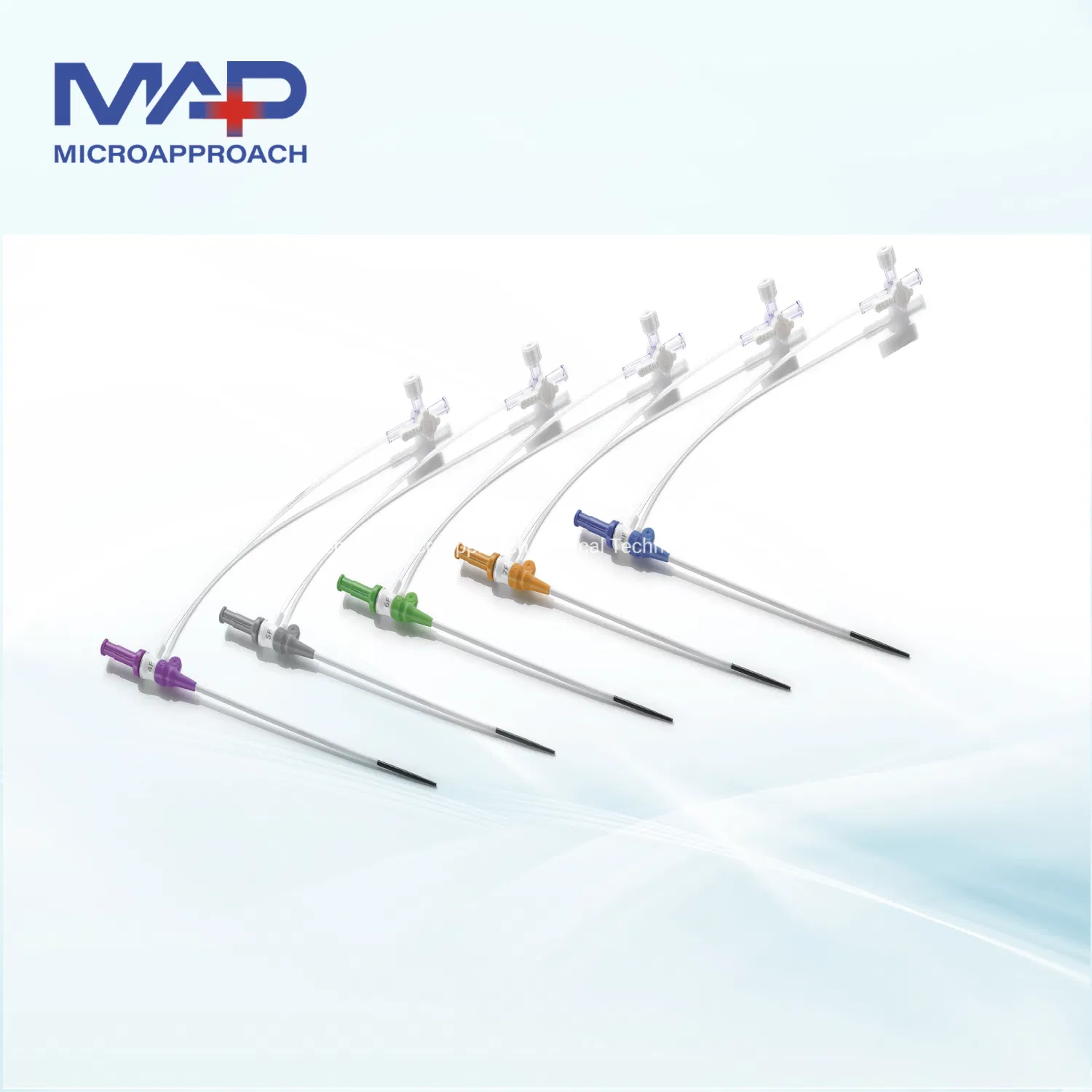

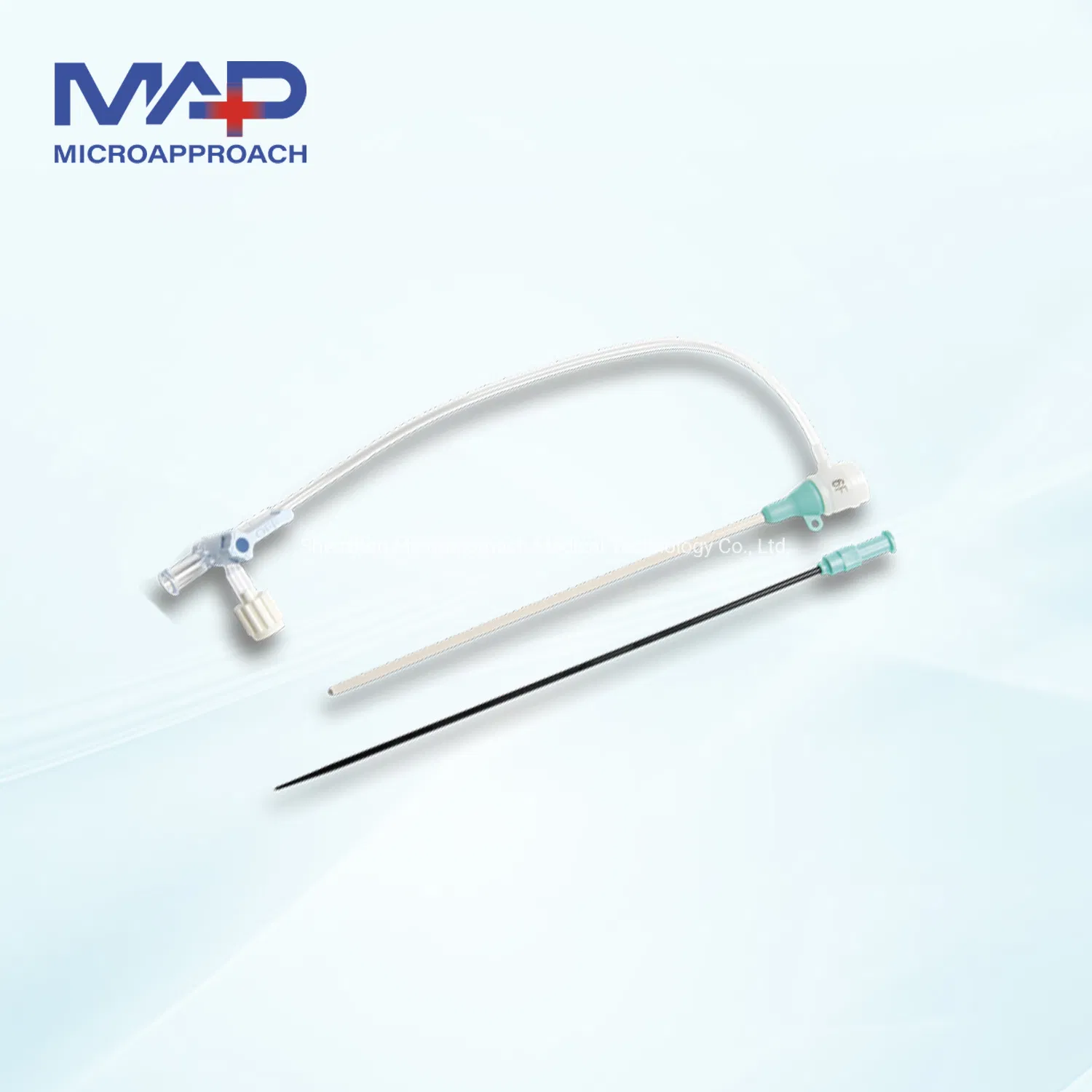

Comprehensive Set: Consists of a sheath, a dilator, a guide wire, an introducer, and a syringe.

Radiopaque Components: All components entering blood vessels are radiopaque for clear visualization.

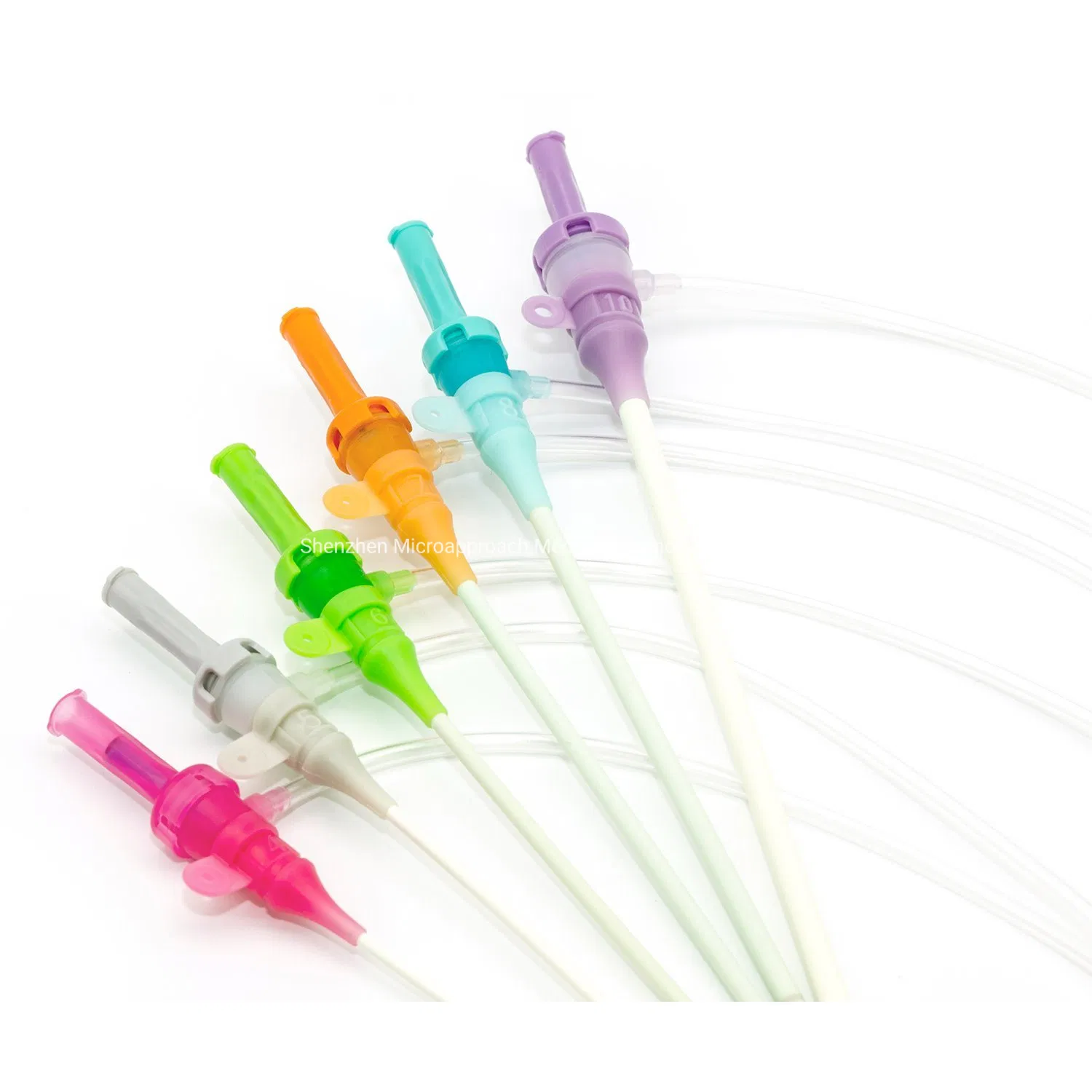

Advanced Sheath Design: Incorporates a 1-way valve and a 3-way stopcock. Highly flexible and designed to resist kinking.

Precise Dilator Fit: Allows for simultaneous motion of both dilator and sheath.

Super-elastic Guide Wire: Smooth, hemorepellant surface coating prevents kinking.

Universal compatibility with most guidewires and catheters on the market.

Special biocompatible materials ensure smooth operation and minimize trauma.

Proven trackability and kink resistance for an enhanced clinical experience.

Technical Parameters

Model	Size	Sheath OD/ID (mm)	Sheath Length (mm)	Dilator OD/ID (mm)	Dilator Length (mm)	Guide Wire (mm)	Syringe
CS-0409	4Fr	2.0 / 1.55	90	1.47 / 0.64	140	0.53×450	2.5mL
CS-0415	4Fr	2.0 / 1.55	150	1.47 / 0.64	210	0.53×450	2.5mL
CS-0511	5Fr	2.6 / 1.95	110	1.87 / 1.06	170	0.89×450	2.5mL
CS-0516	5Fr	2.6 / 1.95	160	1.87 / 1.06	220	0.89×450	2.5mL
CS-0611	6Fr	2.8 / 2.25	110	2.20 / 1.06	170	0.89×450	2.5mL
CS-0616	6Fr	2.8 / 2.25	160	2.20 / 1.06	220	0.89×450	2.5mL

Product Gallery

Frequently Asked Questions

What is the primary use of this introducer sheath set?

It is designed to establish percutaneous access to blood vessels, allowing for the insertion of catheters and the retrieval of foreign objects like fragments or leads.

What sterilization method is used for these products?

All sets are sterilized using Ethylene Oxide (EO) sterilization to ensure clinical safety.

Are the components visible under X-ray?

Yes, all components that enter the blood vessels are radiopaque, ensuring high visibility during procedures.

Does the sheath prevent blood leakage during use?

Yes, the sheath incorporates a 1-way valve that prevents blood leakage even when used with catheters up to two Fr sizes smaller.

What is the shelf life and quality guarantee of the set?

The product comes with a 3-year quality guarantee period from the date of manufacture.

Can I request custom branding or OEM services?

Yes, we support both OEM and ODM services, including logo printing and customized packaging requirements.
