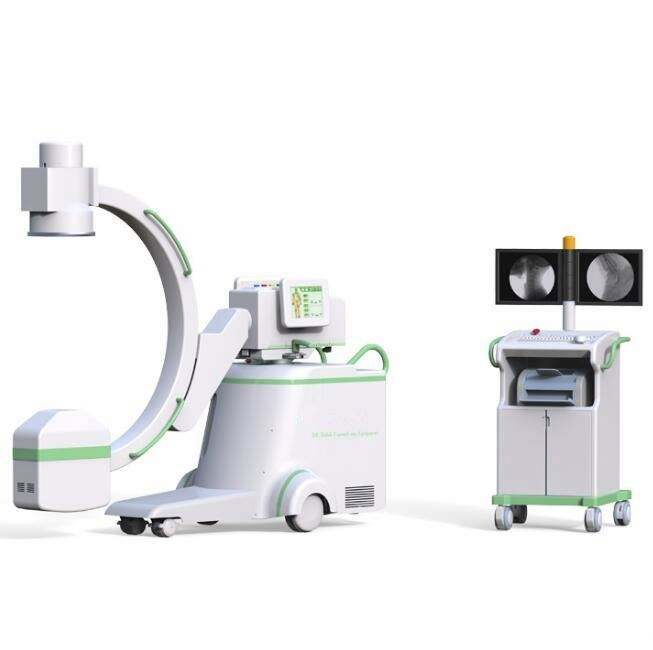

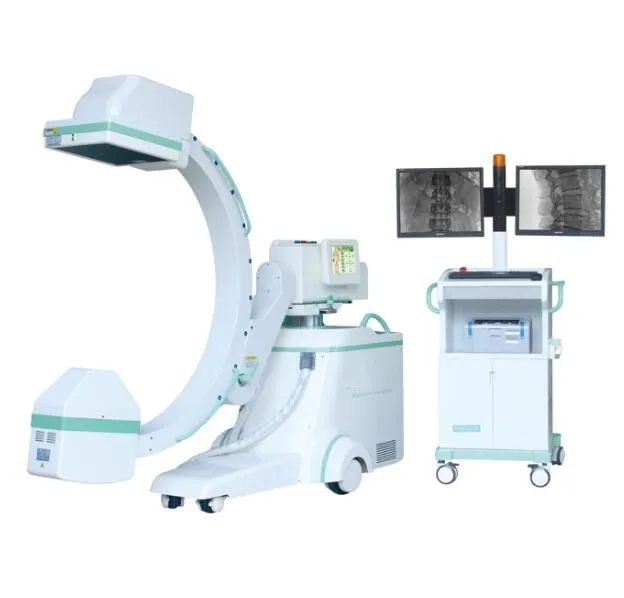

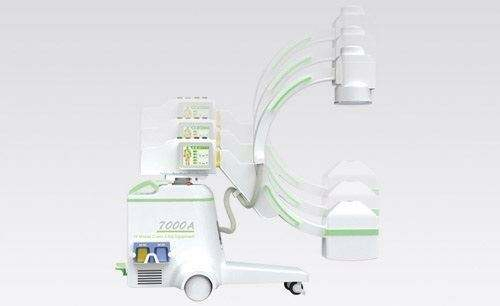

16kw Hf C-Arm System Am-7000c for Angiography

1 / 5

16kw Hf C-Arm System Am-7000c for Angiography

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Information Overview

Model NO.

AM-7000C

Certification

CE, ISO13485

Instrument Class

Class II

Warranty

2 Years

Power Source

Electric

Material

Metal, Plastic

Properties

Medical X-ray Equipments

After-Sale

Online Technical Support

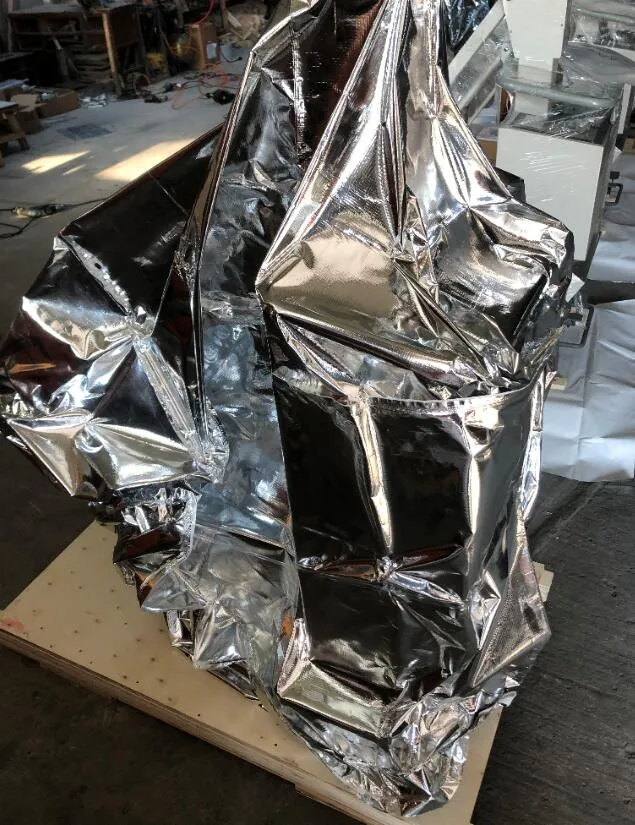

Transport Package

Wooden Case

Production Cap.

1000 Sets Per Month

Key Characteristics & Features

Advanced High Voltage Generator: Equipped with high power and microfocus to optimize digital image quality.
Intelligent Control: Features full pulse fluoroscopy and smart exposure control for safety and precision.
Versatile Operating Modes: Multiple modes designed to satisfy various clinical and surgical demands.
DICOM 3.0 Compatible: Digital graphic processing workstation with full Dicom3.0 compatibility for seamless data management.

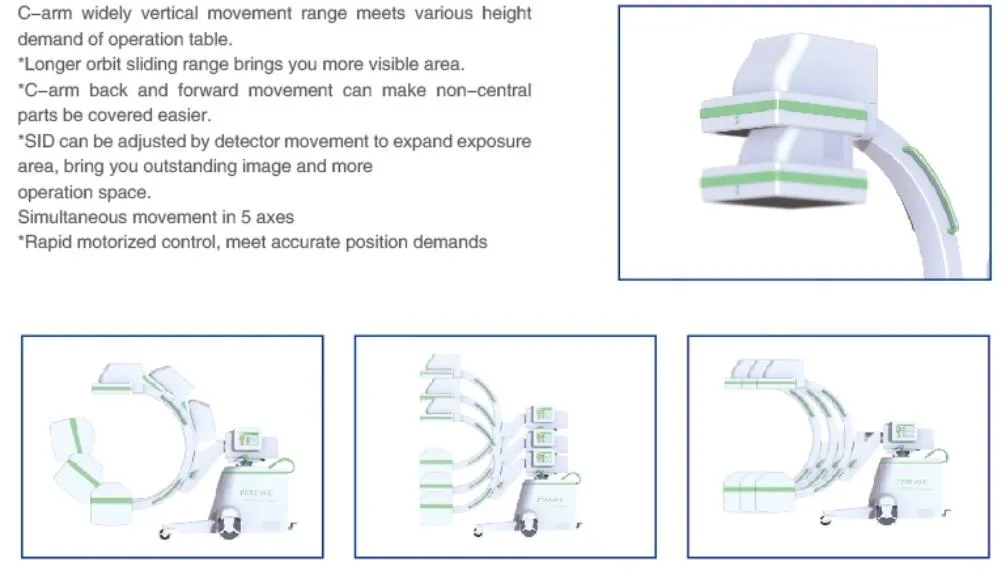

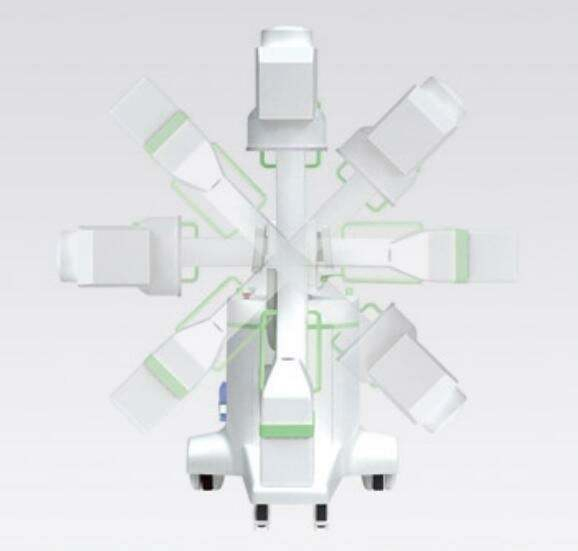

Four-Dimensional Control: Power-operated control ensures quick and highly accurate positioning during procedures.

Technical Specifications

Component / Function	Technical Details
High Frequency Power Supply	Power output: 16kW \| Inverter Frequency: 60 kHz
Continuous Fluoroscopy	Tube voltage: 40kV~125kV \| Tube current: 0.3mA~4mA (Adjustable)
Enhanced Fluoroscopy	Tube voltage: 40kV~125kV \| Tube current: 0.3mA~8mA (Adjustable)
DSI (Digital Spotfilm)	Optional 1-5 pictures
Radiography Specs	40kV~125kV \| 200mA
X-ray Tube	Rotary anode focus 0.3/0.6 mm \| Thermal capacity: 212kJ

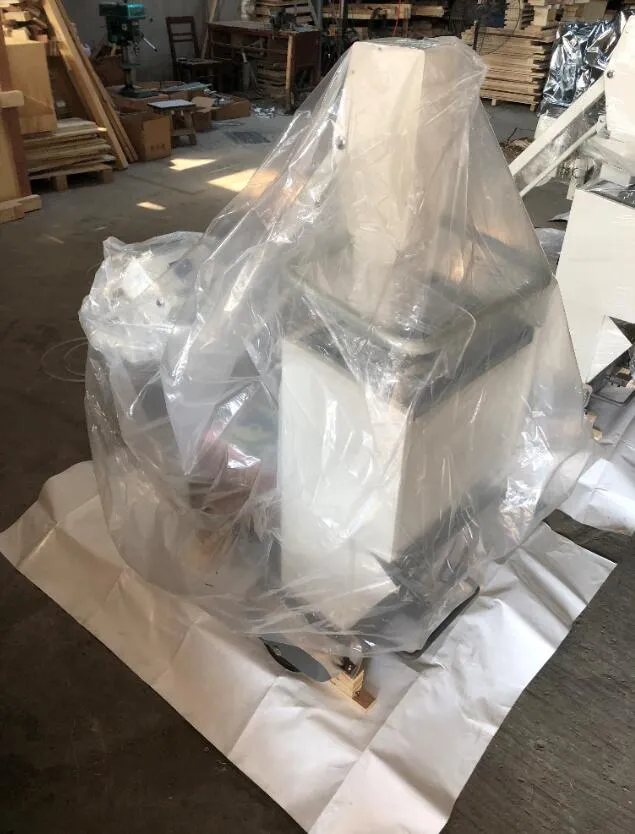

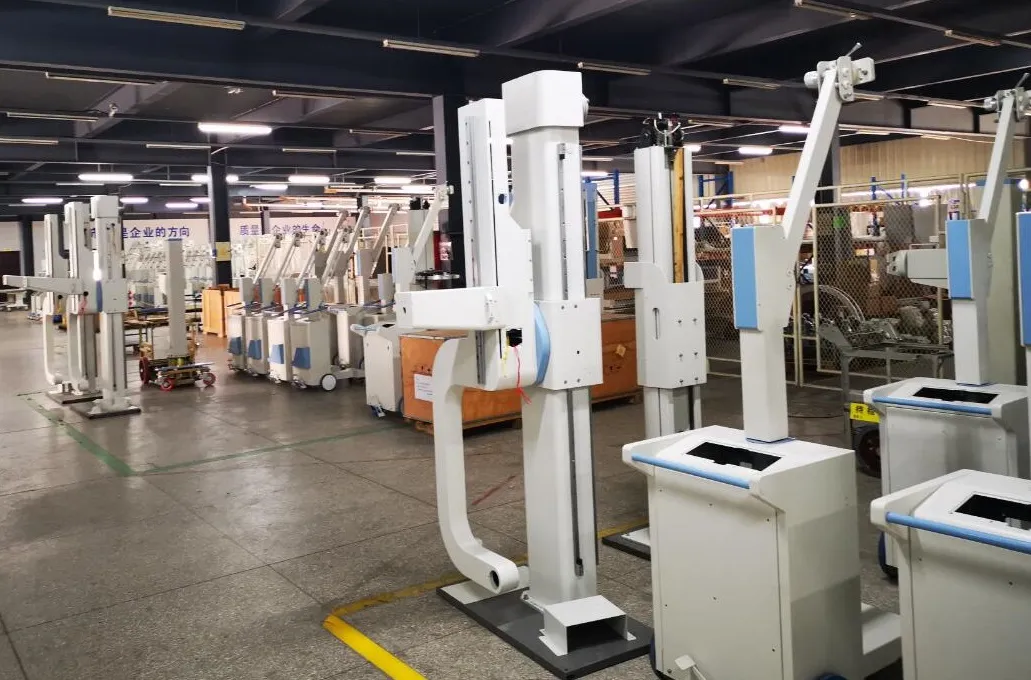

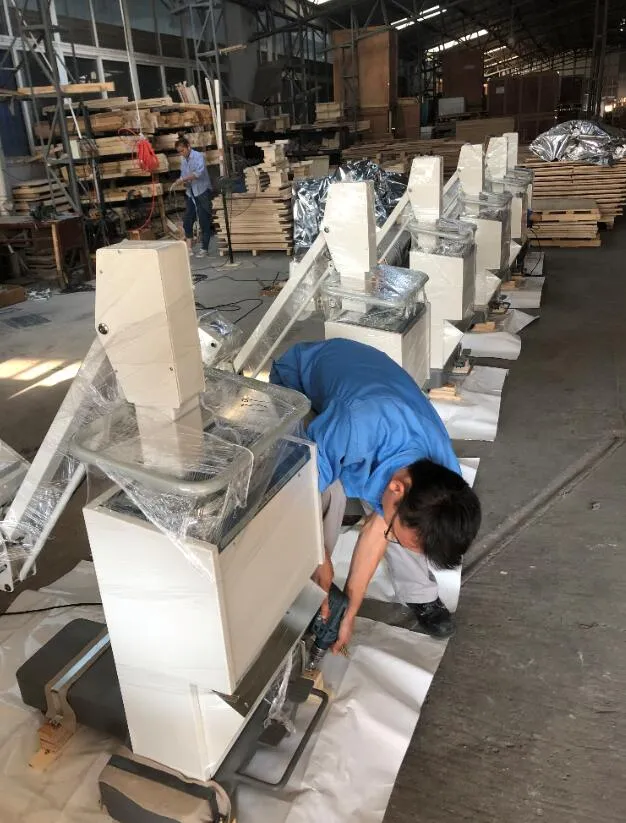

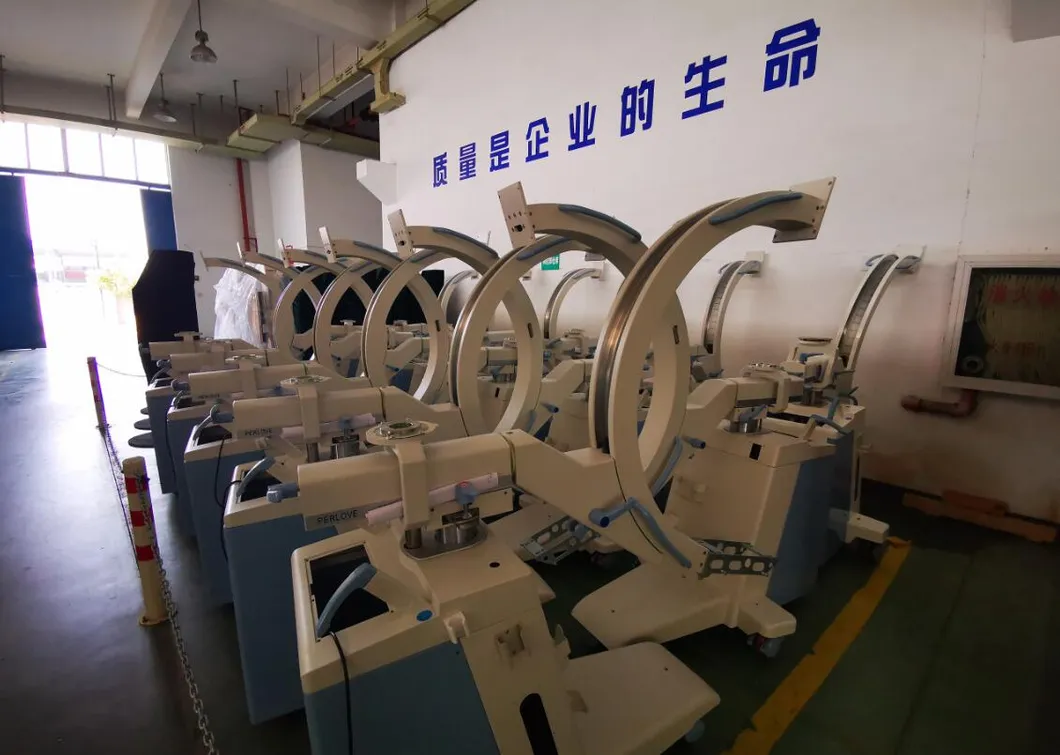

Manufacturing Workshop

Frequently Asked Questions

What is the output power of the AM-7000C C-Arm system?

The AM-7000C system features a high-frequency inverter power supply with a 16kW output, ensuring high-quality imaging for various medical applications.

Is this equipment compatible with modern medical data standards?

Yes, the system is fully DICOM 3.0 compatible, allowing for seamless integration with hospital digital graphic processing workstations and networks.

What certifications does this C-arm system hold?

The AM-7000C is certified with CE and ISO13485, meeting international safety and quality standards for medical Class II instruments.

Does the system allow for 3D imaging?

Yes, the device is designed as a 3D image medical C-arm x-ray machine, optimized for digital imaging through its high-power microfocus generator.

What kind of movement control does the AM-7000C offer?

The system utilizes four-dimensional power-operated control, which ensures that positioning is both quick and extremely accurate during clinical procedures.

What is the warranty period for this device?

The product comes with a standard 2-year warranty and includes online technical support for after-sale service.
